Adding a new client brand to hdatools

Source: vignettes/articles/adding-a-brand.Rmd
adding-a-brand.Rmd

hdatools’ theming is built on one idea: brands are data. Every theme_*(), scale_color_*()/scale_fill_*(), scale_*_*_c()/scale_*_*_b(), and *_colors/*_color() export is a thin, brand-agnostic wrapper over a single internal registry, .brands (see R/brands.R). Adding a new client brand means adding one entry to that registry — the wrappers below it are one-liners you copy-and-rename, not new logic.

This article walks through how VHA was added as hdatools’ fourth brand, as the worked example.

1. Confirm the brand assets first

Before writing any code, get three things confirmed directly (never invent or infer them):

  • The brand’s hex palette, with a label for each color.
  • Rights to bundle the brand’s font(s) — hdatools ships static .ttf files in inst/fonts/, registered offline via systemfonts::register_font() (from the bundled file, never fetched from a font server), so redistribution rights matter, not just “the font looks free.”
  • Any design decisions specific to the brand (base text size, output-format size adjustments, line height, title/subtitle margins) if the client already has an existing house style to match.

VHA’s palette and Montserrat’s OFL licensing were confirmed in chat before R/brands.R was touched.

2. Add the registry entry

Every brand entry in .brands has the same shape:

vha = list(
  palette = c(
    "Dark Turq"   = "#0C4D4F",
    "Light Green" = "#A0D18E",
    "Yellow"      = "#ECC51E",
    "Light Turq"  = "#19787B",
    "Grey"        = "#2E3030",
    "Light Blue"  = "#E3F3F5"
  ),
  gradient = NULL,          # only populated for brands with a legacy
                            # scale_*_gradient_*() to soft-deprecate
  na_color = "#d6dbdb",
  fonts = list(title = "Montserrat", body = "Montserrat"),
  base_size = 13,
  html_adjust = 4,
  pdf_adjust = 7,
  lineheight = 0.9,
  theme_fonts = list(
    title = "Montserrat", subtitle = "Montserrat",
    caption = "Montserrat", strip = NULL   # NULL tracks the caller's base_family
  ),
  theme_margins = list(
    title = ggplot2::margin(b = 10, unit = "pt"),
    subtitle = ggplot2::margin(t = -5, b = 10, unit = "pt")
  ),
  ramps = list(
    sequential = list(h1 = 196.3, c1 = 22, l1 = 27, l2 = 95, power = 0.90),
    diverging  = list(h1 = 196.3, h2 = 67.6, c1 = 70, l1 = 40, l2 = 95, power = 0.90)
  )
)

The ramps HCL parameters aren’t hand-picked colors — h1/h2 are the sequential/diverging anchor colors’ own HCL hue (compute with colorspace::hex2RGB(hex) |> methods::as("polarLUV")); c1/l1 follow that anchor’s chroma/lightness; l2 = 95 and the cream light-end hue/chroma are fixed constants shared by every brand (R/ramps.R). Render a swatch and run a CVD simulation (colorspace::deutan()/protan()/tritan()) before committing the params — a hue whose natural lightness is far from the dark anchor (VHA’s Yellow, used for the diverging ramp’s second arm) can render muddy or lose its identity at the anchor lightness. That’s an sRGB gamut limit, not a mistake; document it as a provisional ramp (see scale_color_vha_c()) rather than silently shipping a ramp that looks wrong.

If the brand introduces a new font family, bundle its static .ttf files under inst/fonts/<family>/ alongside its license file, add a manifest row to inst/fonts/LICENSES.md, and register it in register_hda_fonts() (R/theme_helpers.R) with systemfonts::register_font().

3. Add the one-line wrapper exports

Every other brand-specific symbol is a direct copy of an existing brand’s wrapper, renamed:

  • R/colors.R: vha_colors <- .brands$vha$palette and vha_color <- .brand_color(.brands$vha$palette, "VHA").
  • R/themes.R: theme_vha() calls .brand_theme(.brands$vha, brand = "vha", ...) with the brand’s own base_size/base_family/html_adjust/pdf_adjust defaults.
  • R/scales.R: scale_color_vha()/scale_fill_vha() (+ scale_colour_vha() alias) call .scale_brand_discrete(); scale_*_vha_c()/scale_*_vha_b() (+ aliases) call .scale_brand_continuous()/.scale_brand_binned().

None of R/scales.R’s or R/themes.R’s shared internals (.brand_theme(), .scale_brand_discrete(), .scale_brand_continuous(), .scale_brand_binned(), .ramp_hex()) needed to change, or even know VHA exists — they all take brand as a string and read everything else from .brands[[brand]]. If adding a brand ever requires an if (brand == "...") branch in one of those internals, that’s a sign the shared builder isn’t general enough yet — worth flagging before hand-rolling a brand-specific exception.

4. Document and test

Run devtools::document() to pick up the new roxygen blocks (NAMESPACE and man/*.Rd are generated — never hand-edit them). Mirror the existing per-brand test coverage in tests/testthat/: palette identity against the registry, theme element identity via ggplot2::calc_element(), scale output via ggplot2::ggplot_build(), and (if a new font was bundled) that the .ttf files ship and register offline.

VHA in action

library(ggplot2)
library(scales)
library(hdatools)

housing_costs <- data.frame(
  locality = c("Locality A", "Locality B", "Locality C", "Locality D"),
  median_rent = c(1180, 1340, 1050, 1420)
)

ggplot(housing_costs, aes(median_rent, reorder(locality, median_rent), fill = locality)) +
  geom_col() +
  scale_fill_vha() +
  scale_x_continuous(labels = label_dollar()) +
  theme_vha(flip_gridlines = TRUE) +
  add_zero_line("x") +
  labs(
    title = "Median gross rent",
    subtitle = "Example localities (synthetic data)"
  )

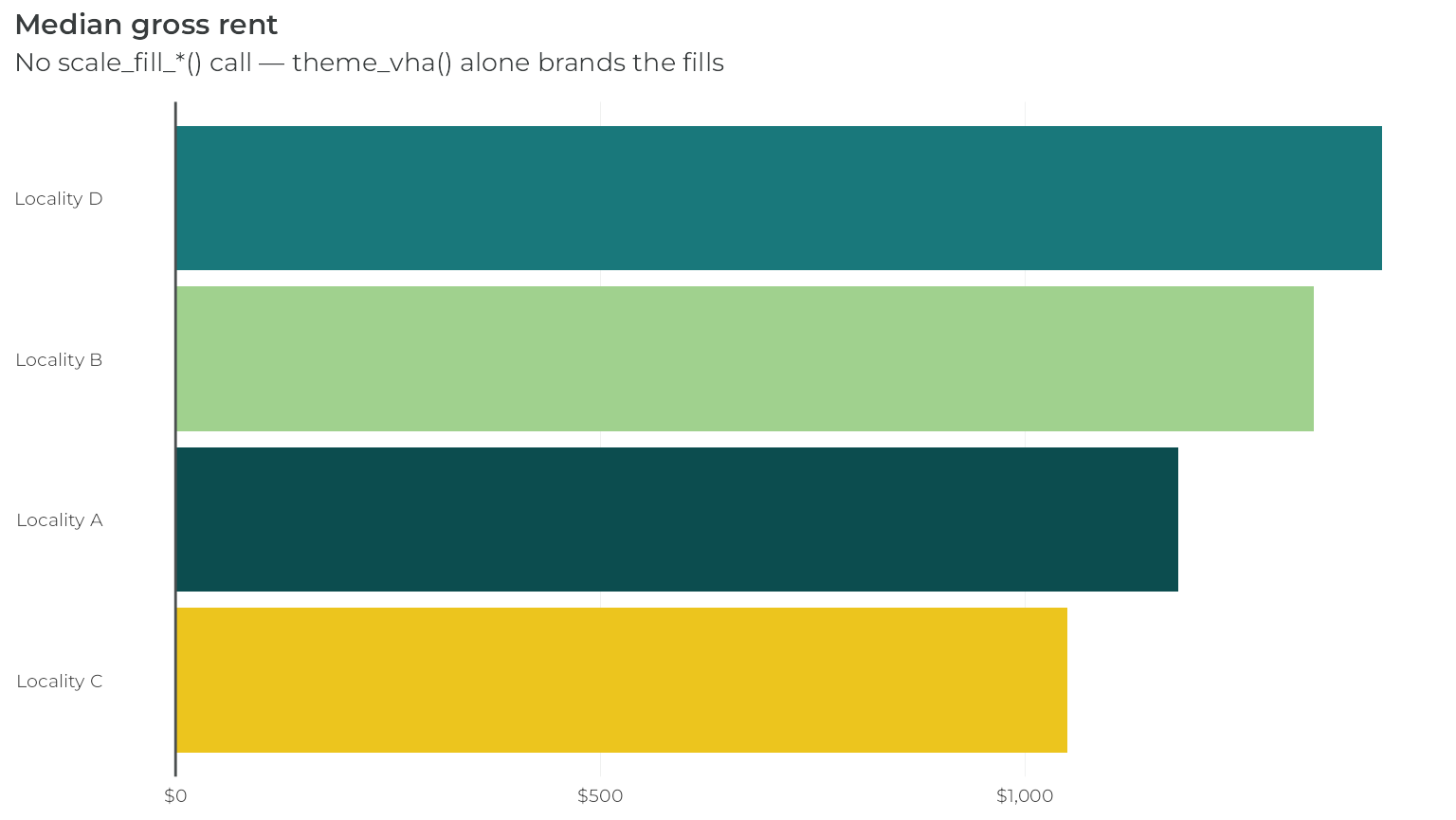

A bare theme_vha() with no scale_*() call also brands the plot (ggplot2 >= 4.0’s theme-carried palette):

ggplot(housing_costs, aes(median_rent, reorder(locality, median_rent), fill = locality)) +
  geom_col() +
  scale_x_continuous(labels = label_dollar()) +
  theme_vha(flip_gridlines = TRUE) +
  add_zero_line("x") +
  labs(
    title = "Median gross rent",
    subtitle = "No scale_fill_*() call — theme_vha() alone brands the fills"
  )
